进口脉冲星APEX XQ38热瞄准镜
Riflescope采用尖端的“白热”和“黑热”热技术设计，提供了1700多码的精确放置。通过连续数码变焦可实现长距离观看，可扩大放大范围。 384x288的热核心分辨率捕获更详细的图像，而清晰的AMOLED显示屏和高达50 Hz的帧速率可提供更快速移动的物体的一致，生动的图像。 Apex™LRF XQ50的4倍数码变焦功能提供了连续的数码变焦，可实现更大的放大倍数。
画中画数码变焦会在屏幕顶部显示标线的瞄准点的放大图像。掩模版的这种放大图像是精确瞄准的理想选择，而显示器的外围设备保持宽视野的基准放大率，可实现快速，连续的后续拍摄。 它还包括可更新软件;确保用户不断提高其Apex的性能。 Apex通过内置激光测距仪的新增功能，继续推出高性能热光学系列，达到1000码。
Features:
384x288 resolution, 17um pixel pitch core
1,750yd detection range
4x digital zoom- continuous zoom and 2x, 3x, 4x stepped zoom
Picture in picture digital zoom
Video output for recording
External power supply adaptable
3 rifle profiles with 3 zero saves
10 variable electronic reticles
One-shot zeroing with freeze function
White-hot/black-hot viewing models
High resolution AMOLED display
Rock, forest, and identification viewing modes
IRIS technology, increased recognition and detection software
Manual, automatic, and semi automatic calibration modes
Defective pixel repair feature

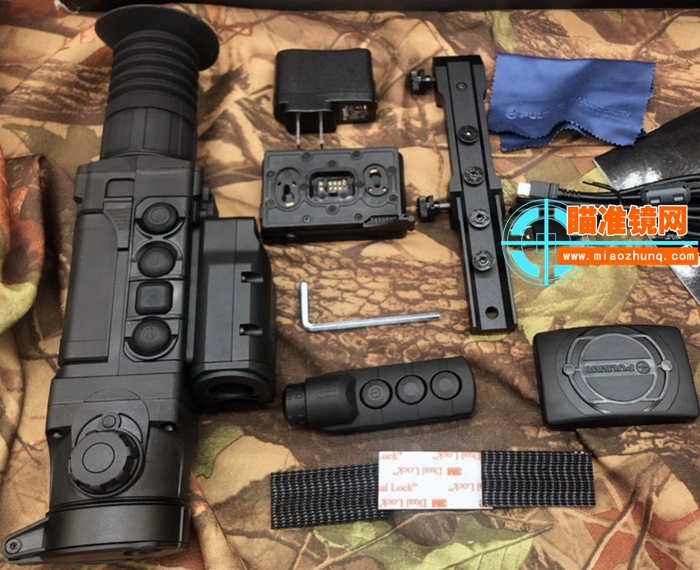

Included:
Wireless remote control
Video output/power cable
2xCR123A
Carrying case
Cleaning cloth
User manual
Warranty card
Batteries Required:
2xCR123A Batteries
Specifications:
Range of Detection, yd / m (Object (Human = 1.7*0.5m): 1750/1600
Material, Lens: Germanium, glass
Optical Characteristic, Reticle, Type: Variable electronic reticles
Number of Preloaded Reticles: 10
Windage & Elevation. adjustment range, mm: 20/20
External Power Supply: EPS3 or EPS5 Battery Packs
Battery life, (with video out off), hours : 4.5
Battery Type: 2xCR123A
Power Supply: 4-6V
Range of Detection, M\n, Rangefinder: 1000 meters
Body Material: Glass-nylon composite
Type of Accessory Mounting Rails: Weaver/Picatinny (Included)
Weight, oz: 27
Width (in/mm): 2.9/75
Height (in/mm): 3.9/100
Length (in/mm): 13.5/343
Remote Control: Wireless (Included)
Calibration: Manual, automatic, and semi-automatic
Waterproof/Water resistant: Water resistant
Level of Protection (acc. to IEC 60529): IPX7unit/IPX4 rangefinder
Operating Temperature: -25/50 Celsius
Laser Wavelength, nm: 905
Focusing Type of Distance: Objective
Diopter Adjustment: -4 to +3.5
The Operation Modes: Rocks, forest, identification
Pin Type of Video Input / Output: Special
Video IN / OUT Availability: no/yes
Display Resolution, pix.: 640x480
Display Type: AMOLED
Pixel Pitch, μm: 17
Spectral Sensitivity, μm: 8-14
Microbolometer Resolution, pixels: 384x288
Frame Rate, Hz: 50
Defective Pixel Repair Option: Yes
Magnification: 2.8 (base, digital zoom)
Eye Relief, mm: 67
Distance, Minimum Focusing Distance: 7ft
Field of View, m@100m, horizontal: 13 (2x zoom-6.5)
Field of View, degrees, horizontal*vertical 7.5/5.6 2x zoom
